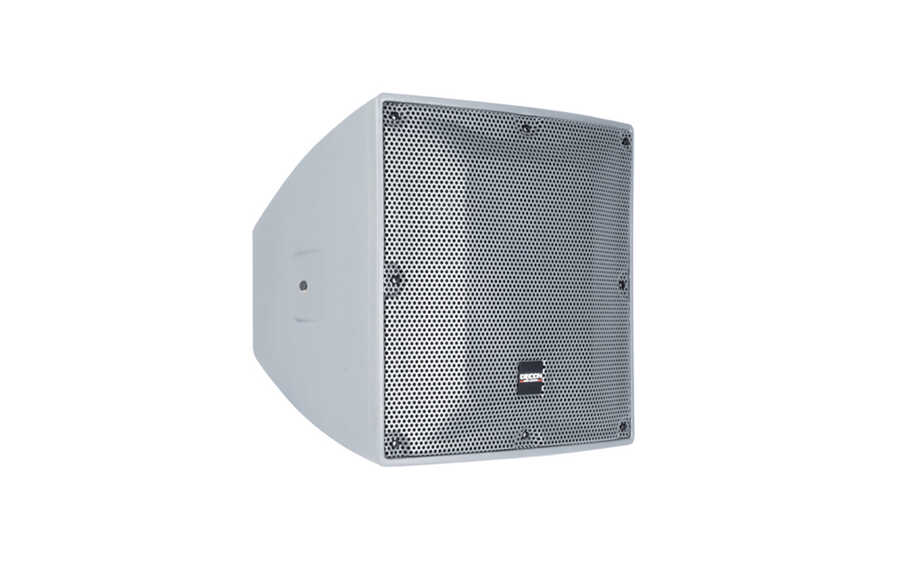

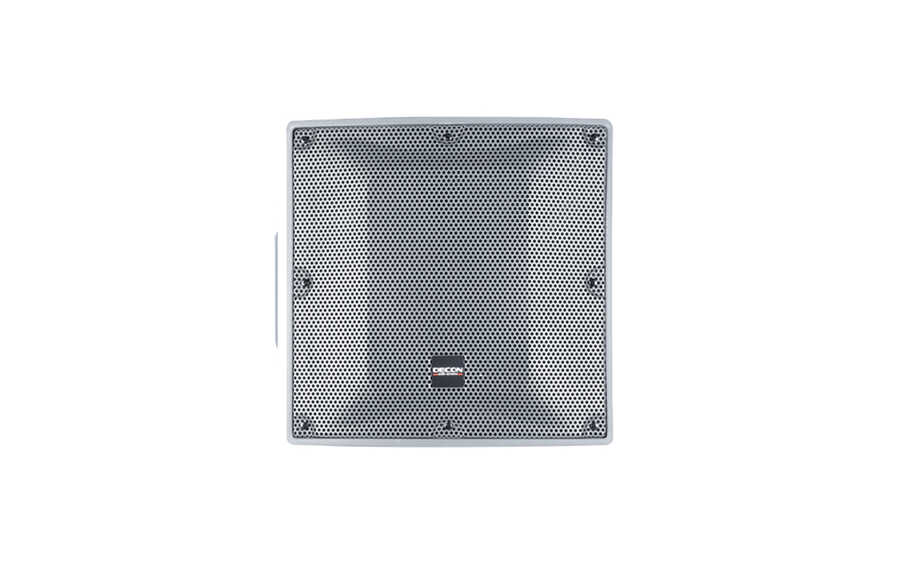

DS-15HT - 15" Coaxial Horn Hoparlör

DS-15HT - 15" Coaxial Horn Hoparlör

Technical specifications

• FREQUENCY RESPONSE(-3dB) 50Hz-18kHz
• DRIVERS 1×15＂(385mm)/3＂voice coil LF,1×1.4＂(36mm) /3"voice coil HF
• INPUT VOLTAGE 100V
• POWER 75W/150W/300W/OFF/8Ω 400W
• SENSITIVITY 103 dB 1 watt/1 metre
• MAXIMUM SPL 129 dB continuous,135dB peak
• IMPEDANCE 8 ohms nominal
• DISPERSION(-6 dB) 60°×40°
• CROSSOVER 1.5 kHz passive
• DIMENSIONS (W)498mm×(H)501mm×(D)596mm
• WEIGHT 31kg/pc
